Professional factory selling ASTM A193 B7 All Threaded Stud Bolts Export to United Arab emirates Detail:
ASTM A193/A193M B7 All Threaded Stud Bolts
API 6A 6D Flange Valve Wellhead ASME/ANSI Flange All Thread Stud Bolts
Alloy steel bolting for pressure vessels, valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
Standard: IFI-136, ASME B16.5, DIN976
Inch Size: 1/4”-4” with various lengths
Metric Size: M6-M100 with various lengths
Other Available Grade:
ASTM A193/A193M B7, B7M, B16, B8 Class 1 & 2, B8M Class 1 & 2,
ASTM A320/A320M L7, L7M, L43, B8 Class 1 & 2, B8M Class 1 & 2, and so on.
Finish: Plain, Black Oxide, Zinc Plated, Zinc Nickel Plated, Cadmium Plated, PTFE etc.
Packing: Bulk about 25 kgs each carton, 36 cartons each pallet
Advantage: High Quality and Strict Quality Control, Competitive Price,Timely Delivery; Technical Support, Supply Test Reports
Please feel free to contact us for more details.

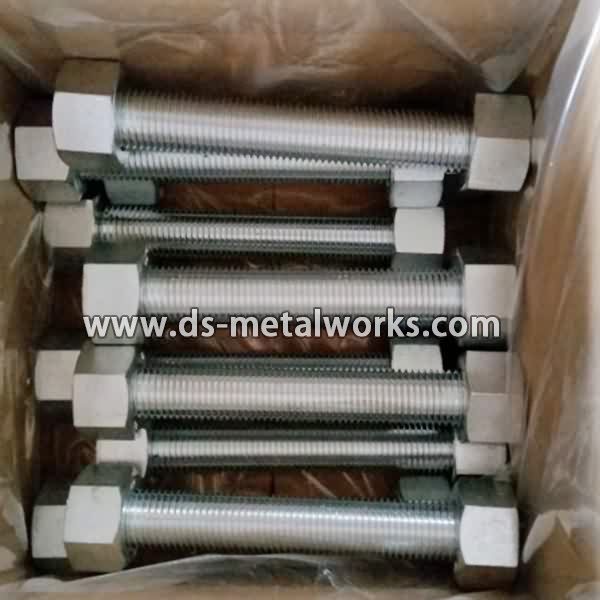

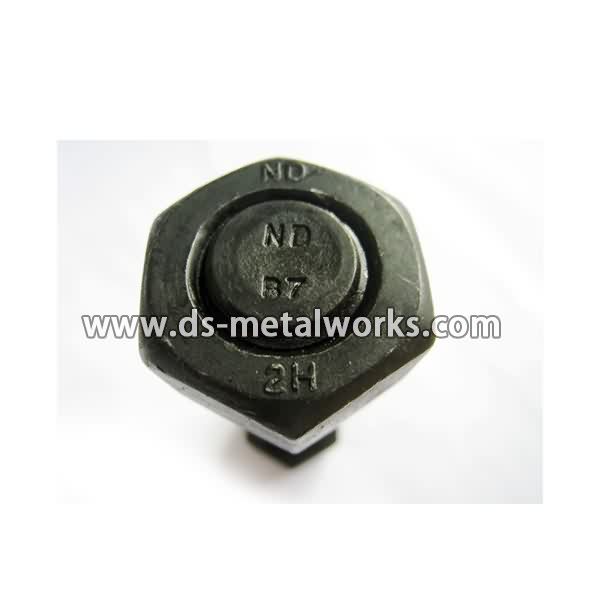

Product detail pictures:
To be able to give you benefit and enlarge our business, we also have inspectors in QC Team and assure you our greatest service and products for Professional factory selling ASTM A193 B7 All Threaded Stud Bolts Export to United Arab emirates, The product will supply to all over the world, such as: Poland , Jamaica , Uganda , We have been very responsible for all details on our customers order no matter on warranty quality, satisfied prices, quick delivery, on time communication, satisfied packing, easy payment terms, best shipment terms, after sales service etc. We provide one-stop service and best reliability to our every customers. We work hard with our customers, colleagues, workers to make a better future.
