Big Discount ASTM F3125 High Strength Structural Bolts Wholesale to Switzerland
Short Description:
ASTM released a new standard in 2015, This specification is a consolidation and replacement of six ASTM standards, including; A325, A325M, A490, A490M, F1852 and F2280. Bolts manufactured under this specification are intended for use in structural connections covered in the Specification for Structural Joints Using High-Strength Bolts, as approved by the Research Council on Structural Connections Dimension: ASME/ANSI B18.2.6, ASME/ANSI B18.2.3.7M Various head geometries or special thread l...
Product Detail
Product Tags
Big Discount ASTM F3125 High Strength Structural Bolts Wholesale to Switzerland Detail:
ASTM released a new standard in 2015, This specification is a consolidation and replacement of six ASTM standards, including; A325, A325M, A490, A490M, F1852 and F2280. Bolts manufactured under this specification are intended for use in structural connections covered in the Specification for Structural Joints Using High-Strength Bolts, as approved by the Research Council on Structural Connections
Dimension: ASME/ANSI B18.2.6, ASME/ANSI B18.2.3.7M
Various head geometries or special thread lengths are available under this new standard.
Inch Thread Size: 1/2″-1.1/2″ with various lengths
Thread Size: M12-M36 with various lengths
Grade: A325, A325M, A490, A490M, F1852 and F2280.
Finish: Black Oxide, Zinc Plating, Hot Dip Galvanized, Mechanically Galvanized, and so on
Packing: Bulk about 25 kgs each carton, 36 cartons each pallet. Or, comply with your requirement.
Advantage: High Quality and Strict Quality Control, Competitive price,Timely delivery; Technical support, Supply Test Reports
Please feel free to contact us for more details.

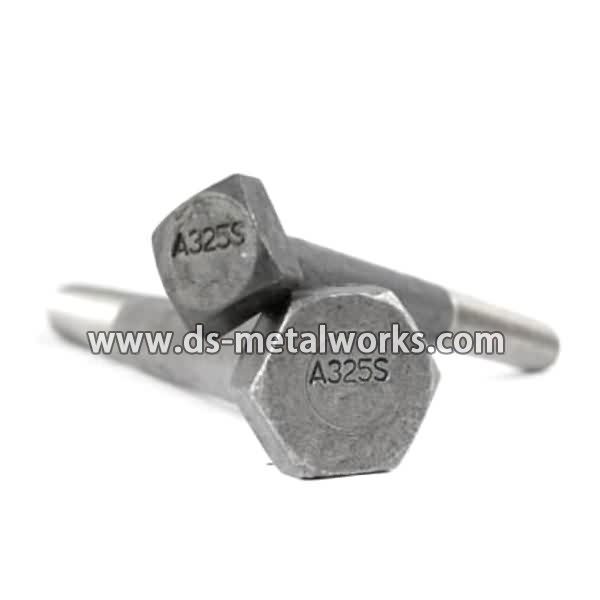

Product detail pictures:
All we do is often involved with our tenet Purchaser to start with, Rely on initially, devoting over the food stuff packaging and environmental defense for Big Discount ASTM F3125 High Strength Structural Bolts Wholesale to Switzerland, The product will supply to all over the world, such as: UK, Lesotho, Auckland, Our company sets up several departments, including production department, sales department, quality control department and sevice center,etc. only for accomplish the good-quality product to meet customer's demand, all of our products have been strictly inspected before shipment. We always think about the question on the side of the customers,because you win,we win!
A walk through of the rebuild of a front hub including hub bearing adjustment and drive shaft end float, on a Land Rover Defender, manufactured from 1998 onwards . . . . . , *SHOW MORE for Torque settings.*
Although this video tutorial is specific to a 1998-on Defender, the principle is the same for many 4×4 vehicles.
In this video we replace the Hub, Calliper and Brake pads.
Carrying out adjustments and checks to:
Hub Bearing Load Adjustment
Drive shaft End Float
And finally bleeding the brakes (pipe and jar method)
Torque figures:
Hub Nut,
1. Torque to 23 lbf ft (30 Nm) then spin the hub to settle the bearings.
2. Final torque to 148 – 163 lbf ft (200 – 220 Nm) , spin and then measure end float.
3. If adjusting and replacing shim spacers repeat the above process.
Calliper securing bolts, 60 lbf ft (82 Nm)
Hub drive flange bolts 48 lbf ft (65 Nm)
Road Wheel,
Steel wheels 80lbf ft (100 Nm)
Alloy wheels 95 lbf ft (130 Nm)
Heavy duty wheels 125 lbf ft (170Nm)
For the video showing the Hub strip down go here:
For a video showing the bearing and seal replacement go here:
If you like what you see hit the like button, and if you would like to see more subscribe to Educational Mechanics here: https://www.youtube.com/user/Mattski6660?sub_confirmation=1
Visit our website for a larger collection at: https://edumech.co.uk
